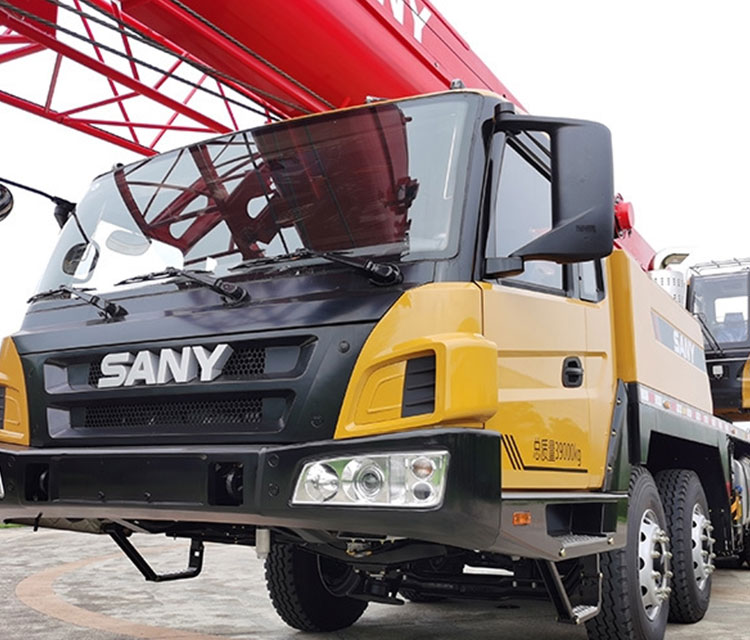

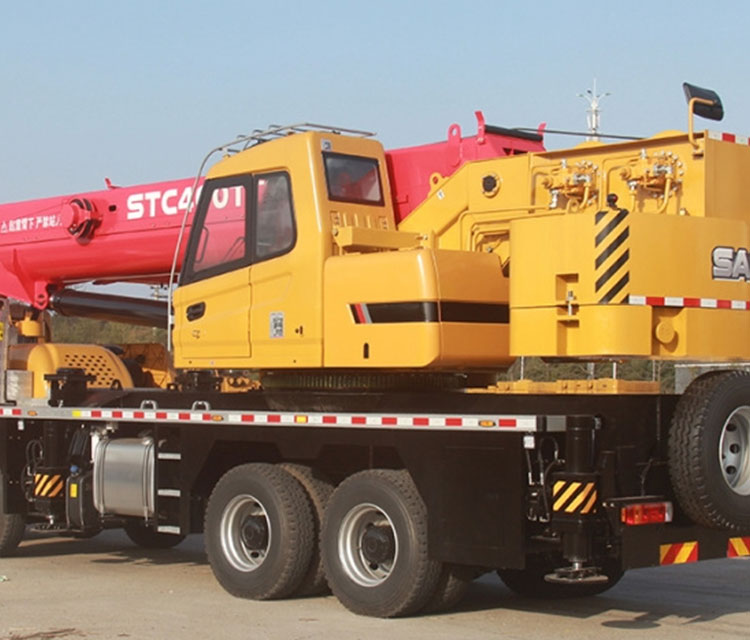

STC400 Mobile truck crane

Longer The fully extended main arm is 44.5m long and equipped with a two-stage auxiliary arm. Faster; The maximum rotation speed reaches 2.6r/min; Kawasaki winch motor, with a maximum winch speed of 145m/min; Brand new quick change multiplier main hook, efficient in operation. Stronger U-shaped main arm, single board arm head, maximum lifting torque 1590kN. m; Weichai Guowu engine and Fastest gearbox, with a maximum climbing slope of 45%, approach angle of 19 °, and departure angle of 13.2 °; Strong G-class off-road vehicle performance, with a 2.55m narrow body and good off-road performance. More stable 4 bridges, reasonable distribution of axle loads; Rear axle dual speed reduction matched with rubber suspension and 12R22.5 vacuum tire; With a double leg span of 7.2m and a full counterweight of 8.6t, the lifting weight is stronger and the lifting distance is more stable; High flow intelligent distribution hydraulic system: The intelligent flow distribution main valve has independent amplitude variation during combined action, solving the problem of combined action impact. Matching the flow rate of the valve core to improve micro motion, the minimum stable speed of the single rope winch is less than 0.2m/min, and the minimum stable speed of the rotation is 0.1 °/s.

SPECIFICATIONS
