40T 3 Axle Drop Side Board Semi Trailer Sidewall Dropside

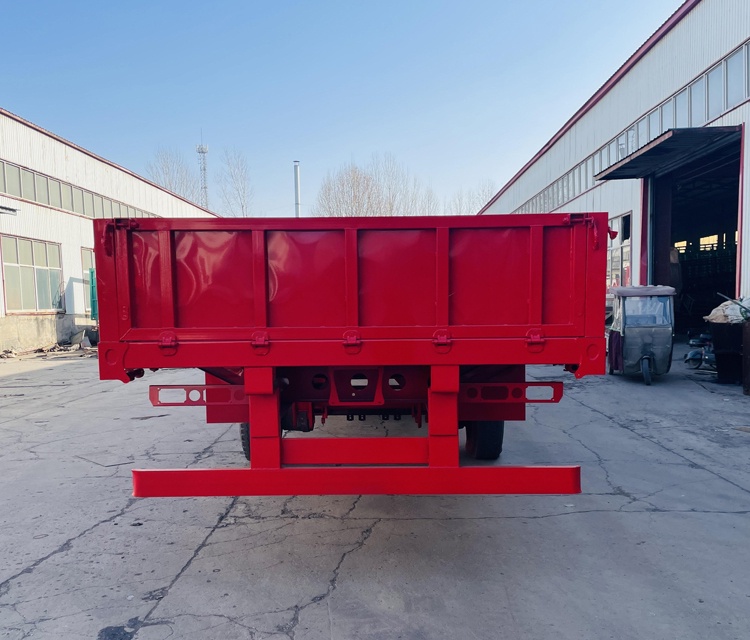

This 40-ton, 3-axle, detachable flatbed semi-trailer features quickly detachable and detachable flatbeds. It can transport bulk cargo such as grain, sand, gravel, building materials, and general merchandise, or be used as a flatbed trailer for transporting large items such as containers and construction machinery. The vehicle boasts a robust structure, stable load-bearing capacity, compliant traffic regulations, and convenient maintenance.
Model number
Semi Trailer
Price

$3,500-7,800

Consultation

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification

Dimension13000/12500/12000/11500/11000/10500mm*2500mm*3050mm(1500mm sidewall high)
Load Capacity(T)60T-80T
Axle3 axles, 13T/16T, FUWA/BPW/BONVO
Tire12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
SuspensionMechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
King pinJOST brand 2.0 or 3.5inch (bolted or welded type)
Landing gearJOST brand
Main beamHeight: 500mm Upper Plate: 14mm
Down Plate: 16mm
Middle Plate: 8mm
Bottom Platform3mm-thick checkered plate
Brake chamberWABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
ABSOptional
ValveWABCO valve
Tool box1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your
needs)

kachetou-xiangaing-9

Detachable sideboards, dual-purpose vehicle. With sideboards installed, it can haul loose cargo; with sideboards removed, it can haul containers and machinery, offering a wide range of applications.

40-ton standard load capacity, stable and durable. The three-axle design provides reasonable load-bearing capacity, suitable for long-distance road transport.

Easy loading and unloading, high efficiency. The plug-in structure allows for quick and easy installation and removal of sideboards, saving time and effort in loading and unloading goods.

Simple structure, easy maintenance. The mature chassis and globally compatible parts result in a low failure rate and low operating costs.

Compliant dimensions, export-ready. The standard width of 2.5 meters complies with road regulations in Africa, the Middle East, and Southeast Asia.
