Product Details
| Product Name | 2 axles lowbed semi trailer | 3 axles lowbed semi trailer | 4 axles lowbed semi trailer |
| Size(mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 |
| Payload | 40000KG | 60000KG | 80000KG |
| Plate | 4mm checked plate | 4mm checked plate | 5mm checked plate |
| Axles | 2 * 13ton capacity | 3 * 13ton capacity | 4 * 13ton capacity |
| (Brand optional:CIMC,TITAN,Mingwei,LUYI,HUAYU JIUJIU,CHENLU,SUNSKY,LUCKIN) | (Brand optional:CIMC,TITAN,Mingwei,LUYI,HUAYU JIUJIU,CHENLU,SUNSKY,LUCKIN) | (Brand optional:CIMC,TITAN,Mingwei,LUYI,HUAYU JIUJIU,CHENLU,SUNSKY,LUCKIN) |

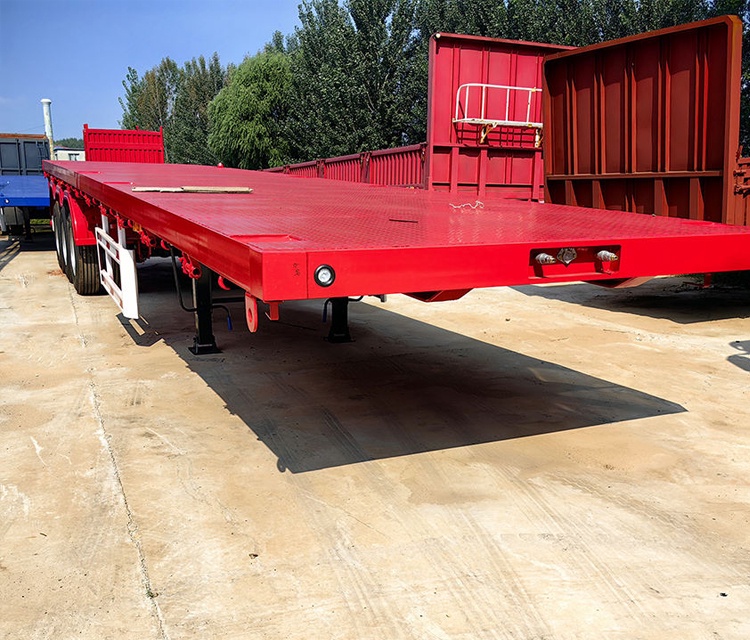

The three-axle 40ft flatbed trailer has the following main uses:
1. Container Transportation (Most Popular Use): Transporting 20ft/40ft standard containers. A mainstay vehicle for ports, docks, freight forwarders, and logistics companies. The most commonly used land transport vehicle for import and export goods.
2. Large Equipment/Construction Machinery Transportation: Excavators, loaders, road rollers, pavers, cranes, drilling rigs, and other construction machinery for site transport. Agricultural machinery: harvesters, tractors, and other large agricultural machinery.
3. Steel, Building Materials, and Oversized Cargo Transportation: Steel pipes, structural steel, steel plates, reinforcing bars, precast components, cement pipes, stone, timber, and oversized cargo that is too long, too wide, or difficult to pack in containers.
4. Construction and Site Logistics: Bridge components, steel structures, formwork, and material transport for construction sites. Dedicated for use in mines, sand and gravel pits, and infrastructure projects.
5. Logistics Freight and Less-than-Truckload (LTL) Cargo: Furniture, machinery, large packaged goods, irregularly shaped cargo that cannot fit into containers, long-distance trunk logistics, and intercity freight.
| Ladder | Hydraulic ladder or Mechanical spring ladder | Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional |
| Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ; | Electrical | LED light , 7 ways ,24V |
| Material is Q345B Steel. | Accessory | One tooling box with a set of standard trailer tool |
| Side beam | 250mm I beam; 20mm channel steel ( Material is Q235steel ). | Painting | 1.Sand blasting processing clean rust. |
| Bottom Platform | 4mm thickness diamond steel plate | 2.Coat of anticorrosive primer. |
| Suspension | Mechanical suspension (Air suspension optional) | 3.Coats of finish urethane paint. |
| Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 | 4.Color as customer choice. |

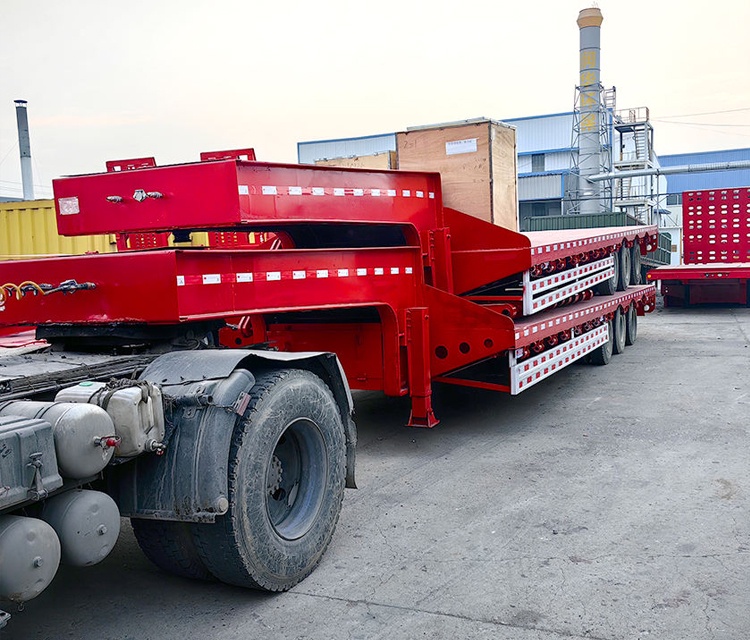

| (specially intended for overseas markets) | Other Descriptions | The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the |
| Tire | 12R22.5 / 11.00R20 8pcs (Other size optional) | transportation. |
| Rim | 9.00-22.5 / 11.00R20 8pcs (Other size optional) | Usage | It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,power plant equipment or machine, and all sorts of steel products. |
| Kin pin | 2’’/3.5’’ bolt type | Other Specifications | It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm. |
| Landing gear | 28 Ton two speed | Remark | We can design model according to client's requirement |
