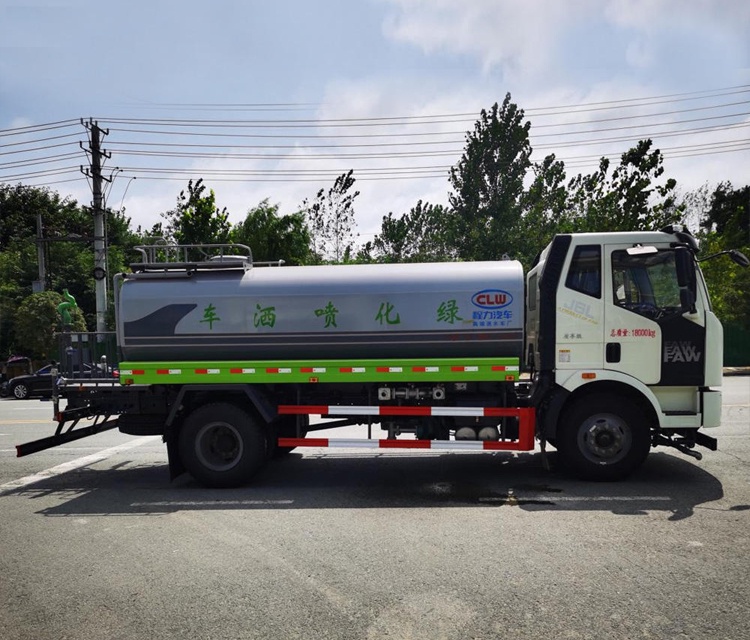

FAW4X2 Water Sprinkler Truck/Mobile Water Tanker 5000L
Wind-powered Sprayer: QF-30 model, 8KW air-cooled diesel generator set, fan power: 2.2KW, pump power: 1.5KW, working pressure: 1.0-3.5MPA, spray flow rate: 20L/min, tilt angle: -5 to 60 degrees (remote control), mist spectrum range: 50-150um, horizontal range (calm wind condition): 30M,16 stainless steel nozzles, 360-degree rotation (manual or remote control). Fan base dimensions (reference): 1050*550*1700mm, generator dimensions (reference): 800*600*650mm, actual dimensions subject to the physical item. (Mist cannon is an optional configuration)
Model number
CLW5182GPSC6
Price
$85,000-16,000

Consultation

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification

projectparameter
product nameCLW5182GPSC6 Type of green spraying vehicle
Chassis modelCA1180P62K1L2A1E6Z
volumeThe announced volume is 11.61 cubic meters, and the actual volume is 14.26 cubic meters
(Cylinder size: 4800 x 2300 x 1520) mm
gross mass18000kg
curb weight7300kg
Rated load mass10505,10570kg
Length, width and height of the vehicle8500×2520×3200mm
wheel base4500mm
enginemodelEngine businessdisplacementpowerhorsepower
CA4DK1-22E6China FAW Group Corporation4764165225
Chassis configurationHalf-floating flat-top small cabin, electric glass lift, mechanical shock-absorbing driver's seat, standard cruise control switch. Chassis configuration: air conditioning, front and rear protective devices, aluminum radiator, manual hydraulic lifting device, suspension 10/12+8, 200L brake pad replacement alarm, tires: 10.00R20 type 18 size, frame: 237*75*(7+4). Transmission: Shaanxi gear 8JS85E

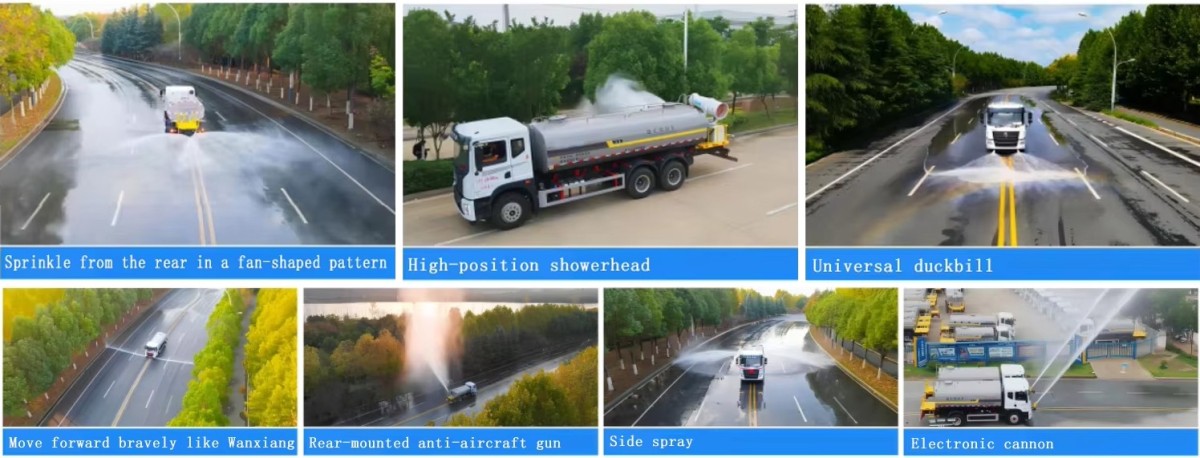

xiangqingyewater-8

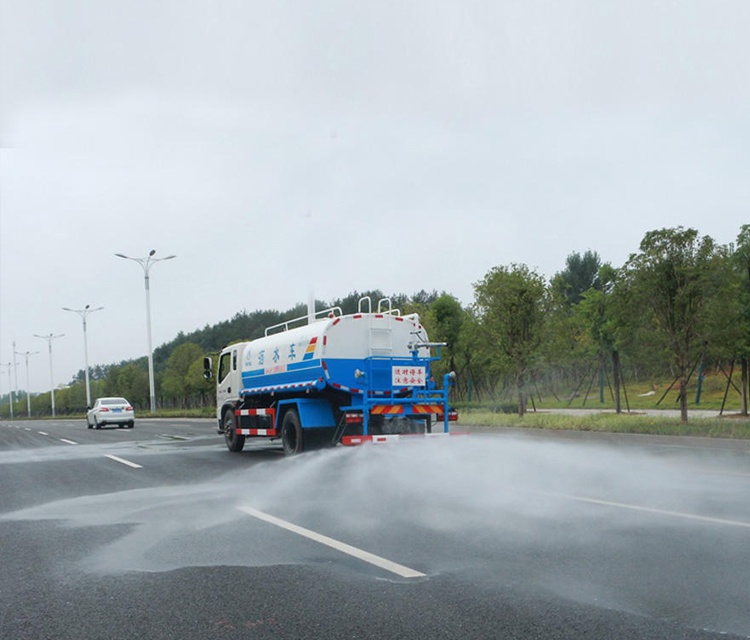

FAW4X2  Water Bowser Sprinkler Truck Mobile Water Tanker with 5000L Capacity

1. Chassis brand: Sinotruk HOWO, SHCMAN, FAW, Foton, Dongfeng, ISUZU, JAC, JMC, Beiben.

2. Emission standard: Euro II, Euro III, Euro IV, Euro V, Euro VI.

3. Drive type: 4*2, 6*4, 4*4, 6*6, 8*4, 6 wheels, 10 wheels,12 wheels.

4. Steering wheel: Left-hand drive, Right-hand drive.

5. Fuel: Diesel, EV.

Water truck, also known as sprinkler truck, multifunctional water truck, landscaping sprinkler truck, water tank truck, or water transport truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, guardrail flushing, as well as water transportation, drainage,emergency firefighting, etc.
