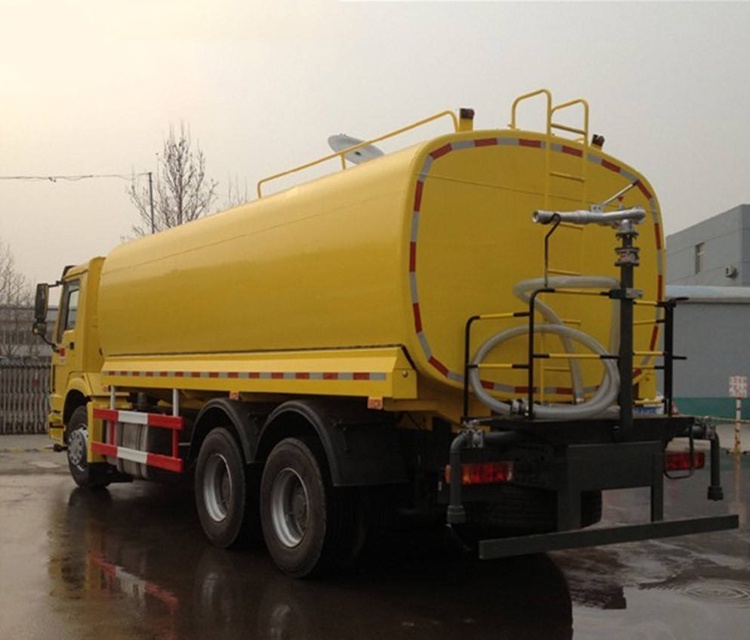

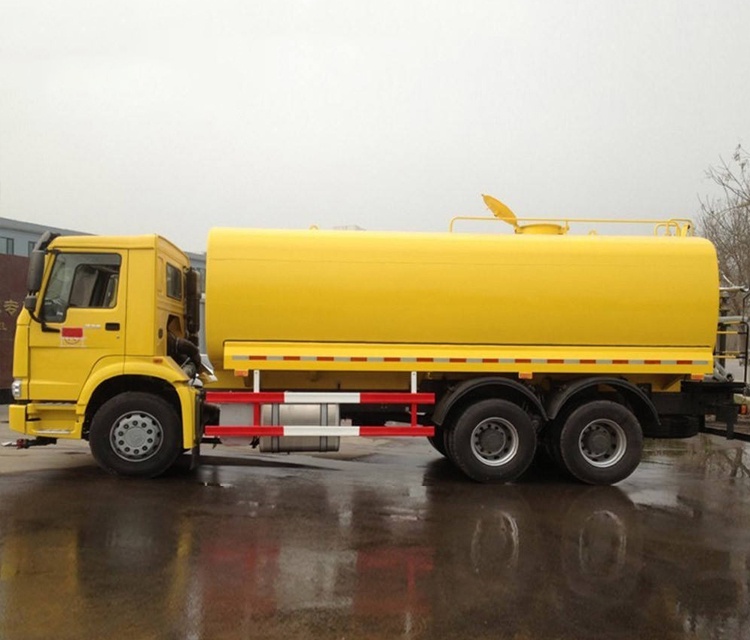

6x4 HOWO 40000 Liters Water tank Truck
The 6x4 HOWO 40000 liters water tank truck features a robust SINOTRUK-HOWO chassis, a 25CBM tank body volume, and a powerful 371 HP diesel engine. It is designed for diverse industries including construction, farming, and energy mining, with a durable carbon steel or stainless steel tank and a 12-16m sprinkling area. The truck supports a maximum gradeability of 40% and offers reliable performance with Euro 2 emission standards.
Model number
ZZ1257N3847W
Price
¥15,000-41,000

Consultation

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

The Sinotruk HOWO 6×4 chassis is a mainstream platform for domestically produced water tanker trucks, widely used in municipal watering, fire fighting, dust suppression in engineering projects, and cross-border transportation. A 40,000-liter (40m³) tanker truck is considered a large-capacity heavy-duty water tanker, commonly found in mines, large infrastructure projects, or long-distance water transport needs in arid regions. This specification exceeds that of conventional urban water sprinkler trucks (typically 10–25m³), and is closer to the category of semi-trailer water tanker trailers or special engineering vehicles.


xiangqingyewater-4


Truck ModelZZ1257N4347 (LHD)
Truck BrandSINOTRUK-HOWO
Driving StyleLeft Hand Driving
Tank body volume16CBM
Approaching angle/Departure angle(°)19/26
Overhang(front/rear) (mm)1500/1739
Wheel base (mm)4350+1350(mm)
Max speed(km/h)75
Maximum gradeability(%)40
Minimum ground clearance(mm)314
Minimum turning circle (m)20
Curb weight(kg)12290
Loading Weight(kg)25000
Fuel tanker capacity(L)300
Fuel consumption(L/km)28L/100 km
ClutchSingle-plate dry clutch Φ430mm
Engine Model(Steyrtechnology,made in China)FueltypeDiesel
Horse Power,max(kw/rpm)371HP,247/2200
EmissionEURO II
ModelWD615.47
Bore126mm
Stroke130mm
Compression ratio29.8hp/l
Specific fuel consumption195g/kwh
TransmissionModelHW19710
Brake systemService brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rearwheels
Auxiliary brakeEngine exhaust brake
Steering systemModelZF8098 Hydraulic Steering with power assistance.
Front axleHF9
Rear axleHC16
ColorOptional (White ,Red ,yellow )
Tyre12R22.5
COLORYELLOW
Electrical systemBattery2X12V/165Ah
Alternator28V-1500kw
Starter7.5Kw/24V
CabHw76 single sleeper
